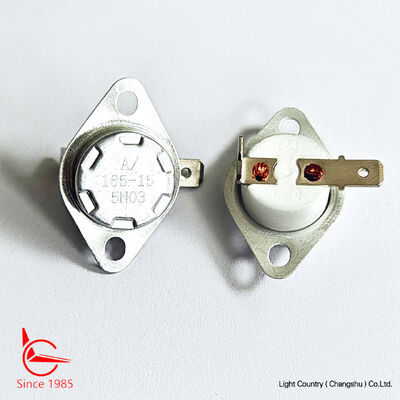

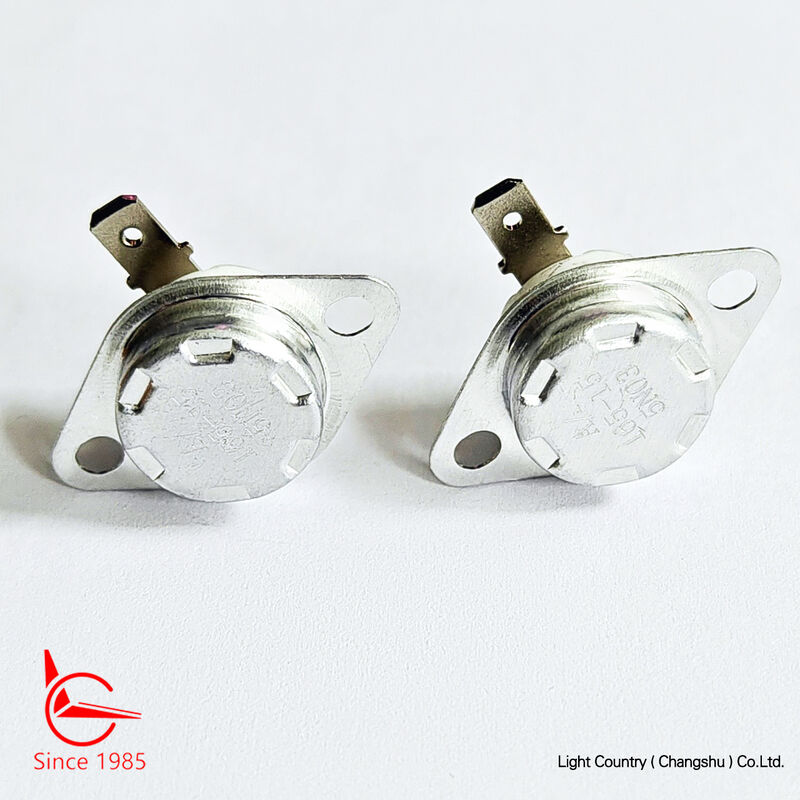

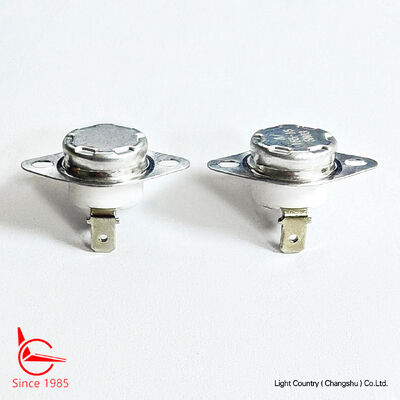

KSD301 Automatic Reset Thermal Switch with fixed bracket for garment steamer

KSD301 Automatic Reset Thermal Switch with fixed bracket for garment steamer
KSD301 Automatic Reset Thermal Switch with fixed bracket for garment steamer KSD301 Automatic Reset Thermal Switch with fixed bracket for garment steamer KSD301 Automatic Reset Thermal Switch with fixed bracket for garment steamer

Grande immagine :  KSD301 Automatic Reset Thermal Switch with fixed bracket for garment steamer

Dettagli:
Luogo di origine: Cina
Marca: Light Country
Certificazione: UL, VDE, CQC
Numero di modello: T24
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1000 pezzi
Prezzo: Contact Thomas for best price.
Imballaggi particolari: Vassoio e cartone
Tempi di consegna: 20~30 giorni
Termini di pagamento: T/T in anticipo
Capacità di alimentazione: Più di 10.000 pezzi al giorno

KSD301 Automatic Reset Thermal Switch with fixed bracket for garment steamer

descrizione
Voltaggio: 250v Attuale: 16A
Misurare: Φ16.1, altezza 12.4 Precisione del controllo: ± 5°C
Vita: > 100 000 volte Temperatura di azione: 165 ℃

KSD301 Automatic Reset Thermal Switch for garment steamer, Height 12.4, Φ16.1



1. About thermal switch manufacturer Light Country.

 Light Country was founded in 1985 in Taiwan.

 We’re with integration of design, production, sales and post-sales as well, to provide fast respond and best price.

 We have been dedicating on ksd301 thermal switch and rocker switch since the beginning of factory built.

 These switches are widely used in household appliance, office equipment, beauty industry, medical devices and so on.

 Our thermal switches can be highly custom designed and produced according to different installation requirements.

 We promise reasonable price, stable quality, timely delivery and superior service.



2. Advantages of our ksd301 Thermal Switch.

1) Flexible design and production to fulfill customer's different installation requirements.

2) High precision, high sensitivity with 100% output inspection for excellent thermal protection and temperature control.

3) Reasonable price and best considerate service.



3. ksd301 Thermal Switch Parameters and Specification.

Factory name Light Country(Changshu)Co.,Ltd.
Product ksd301 Thermal Switch
Usage Garment steamer, upright steamer, handheld steamer
Model T24
Type Manual Reset
Electrical Rating 16A/250V, 15A/125V, 10A/250V
Temperature range 0℃~250℃
Differential 8℃ or more, depend on customer's demand.
Cap Stainless steel
Case Ceramic
Terminal  Brass with tin plated,
Orientation One terminal is vertical, the other is flat.
Circuit Resistance ≤50mΩ
Insulation Resistance 100MΩ min. at DC 500V.
Dielectric Strength AC 1250V for one minute.
Operating Life >100,000 cycles
Factory Certificate ISO9001, ISO14001, IATF16949



4. Notes for ksd301 Thermal Switch used for garment steamer.

 1). Do not disassemble, modify or bypass the KSD301 thermal switch; this may cause overheating or fire hazards.
 2). Ensure the thermal switch is firmly attached to the heating surface for accurate temperature sensing.
 3). Do not use the steamer without water for a long time, as dry heating will trigger frequent thermostat protection and shorten its life.
 4). If the thermal switch fails frequently or cannot reset automatically, stop using the appliance and replace it with a genuine one.

 5). Install and replace the thermal switch in accordance with the rated voltage and temperature parameters to ensure safe operation.



5. FAQ.

Q1: How can we get a quote?
A: Please offer the demand details for thermal switch, such as operating temperature, case/bracket/terminal, application,etc.

Picture or drawing are welcome for our reference. Please refer to below "1-page introduction", to find you want.



Q2: What about the lead time?
A: Less than 7 days for thermal switch sample production.

   Around 10~20 days with long term forecast.

   Around 20~30 days without forecast.

   There is always green light for urgent orders to support our valuable customer.



Q3: Delivery.

A: We prefer EXW term, but we can ask our forwarder source for transport if customer need.



Please contact with Thomas Lee and Julie Liu as below,

Sales: Thomas Lee/Julie Liu
Tel: +86 138 6234 1050/+86 186 2126 2273
Mail: lixin@liangqundianzi.cn or ksd301@aliyun.com.cn
WhatsApp: +86 158 5080 2713
